Potters Bar Tunnel

Site Reference: ECM1 46T

Tunnels

Surveys

Navigation

Survey Details

3D Model

Survey Details

Survey Date

15 / 06 / 2026

Client

AmcoGiffen / Network Rail

Coordinate System

OS

Colour Scans?

Yes

Job Description

Scantech International carried out a 3D laser scan and photogrammetry survey of Potters Bar Tunnel to produce a ClearRoute Gauging Report and a Generation 4 Digital Twin. The survey provides a high-resolution point cloud, photogrammetry model and a reusable baseline dataset for future tunnel monitoring, engineering design and asset management.

Site Notes

Generation 4 Digital Twin – Tunnel surveyed at 20m intervals throughout. Photogrammetry imagery is available from Tab 310 to the tunnel exit. No photogrammetry imagery was captured between Tab 0 and Tab 310. Deliverables include a high-resolution point cloud and ClearRoute Gauging Report.

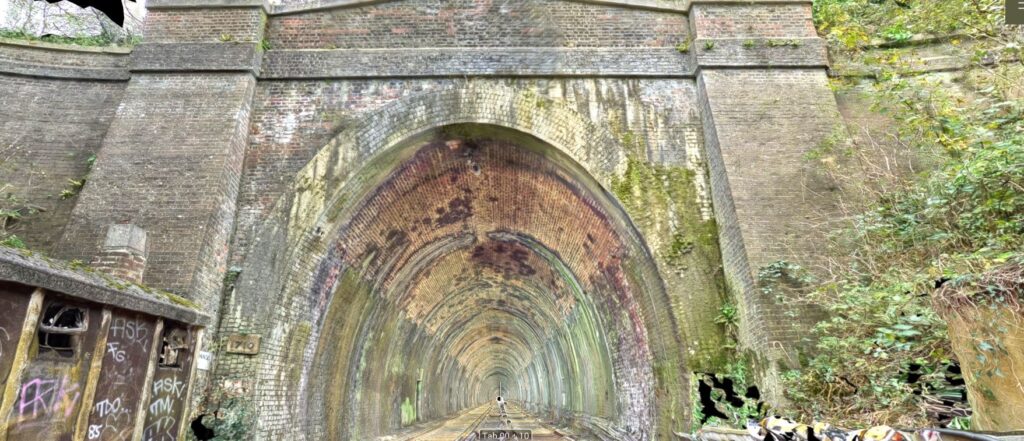

3D Model or Virtual Tour

Instructions

Click the link below to view the 3D model or virtual tour.

Open the 3D Model

Request Data

To request additional or different data, please complete the following form and our team will be in touch.

Contact

For more information regarding the above data please contact info@scantech-international.com or call 01625 260 446

Disclaimer

This data is accurate on the date of survey indicated. Scantech International Ltd are not liable for any changes that might occur.
