Newport Tunnel

Site Reference: SWM2/15871

Tunnels

Surveys

Navigation

Survey Details

Images

Survey Details

Survey Date

07 / 03 / 2021

Client

Network Rail / COWI

Coordinate System

OS

Colour Scans?

No

Job Description

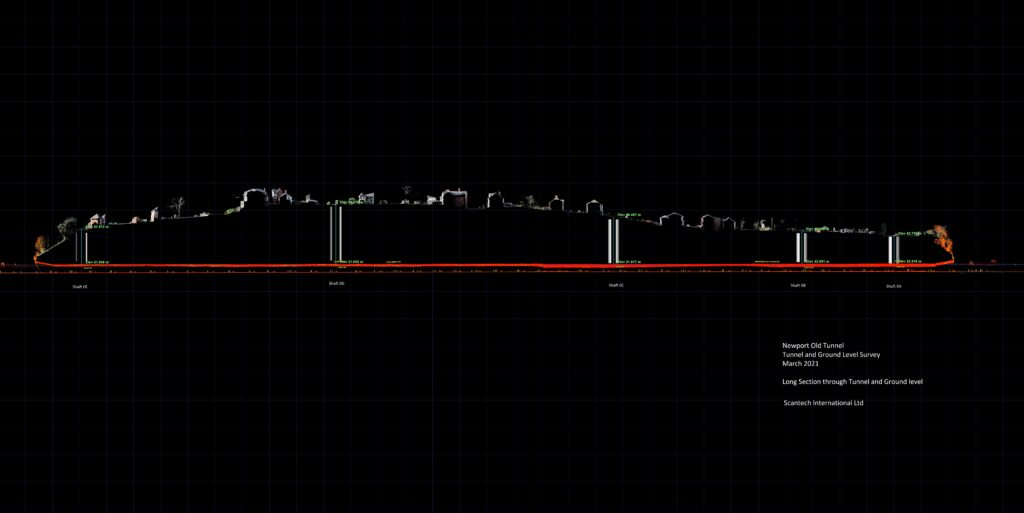

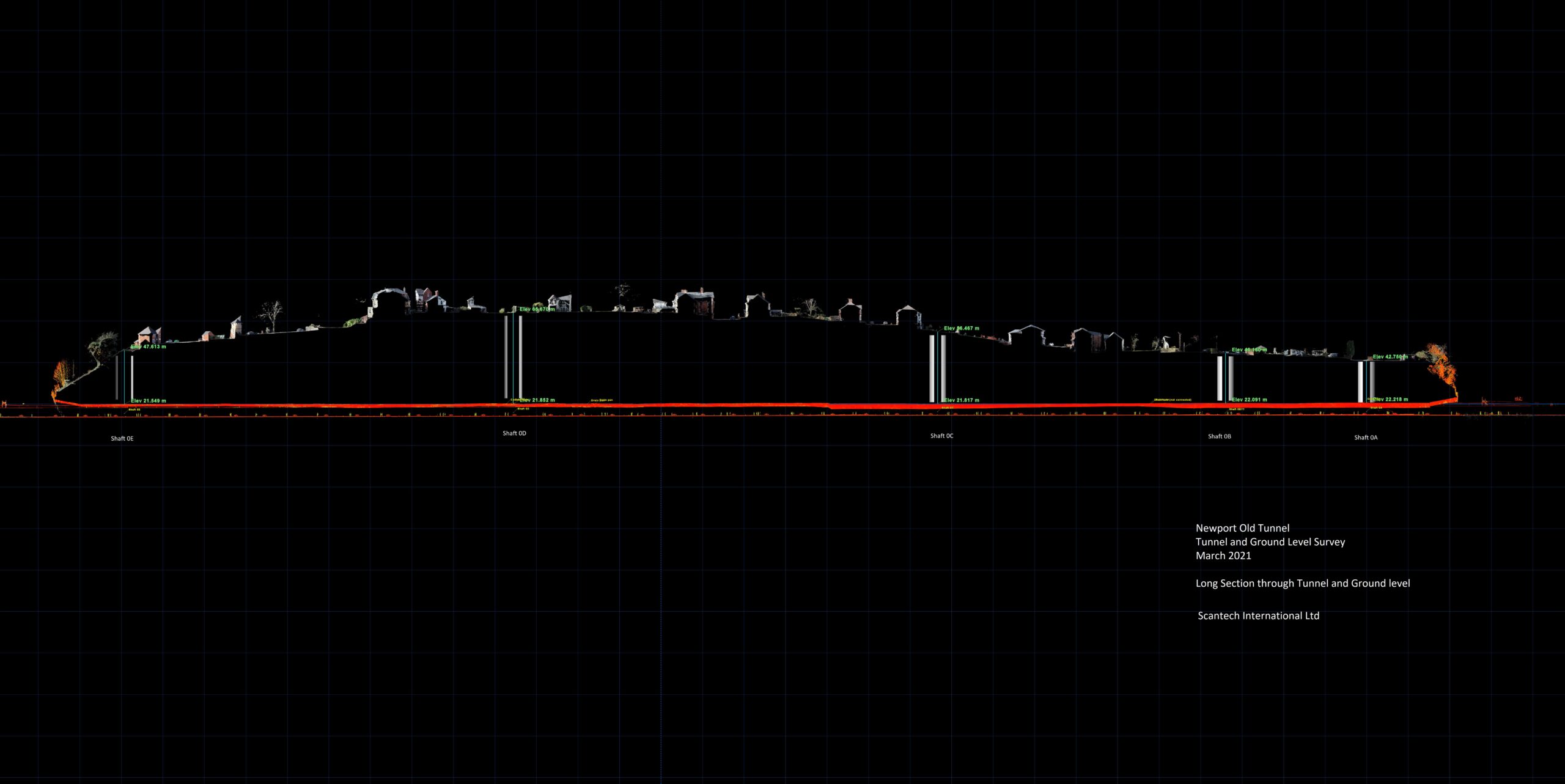

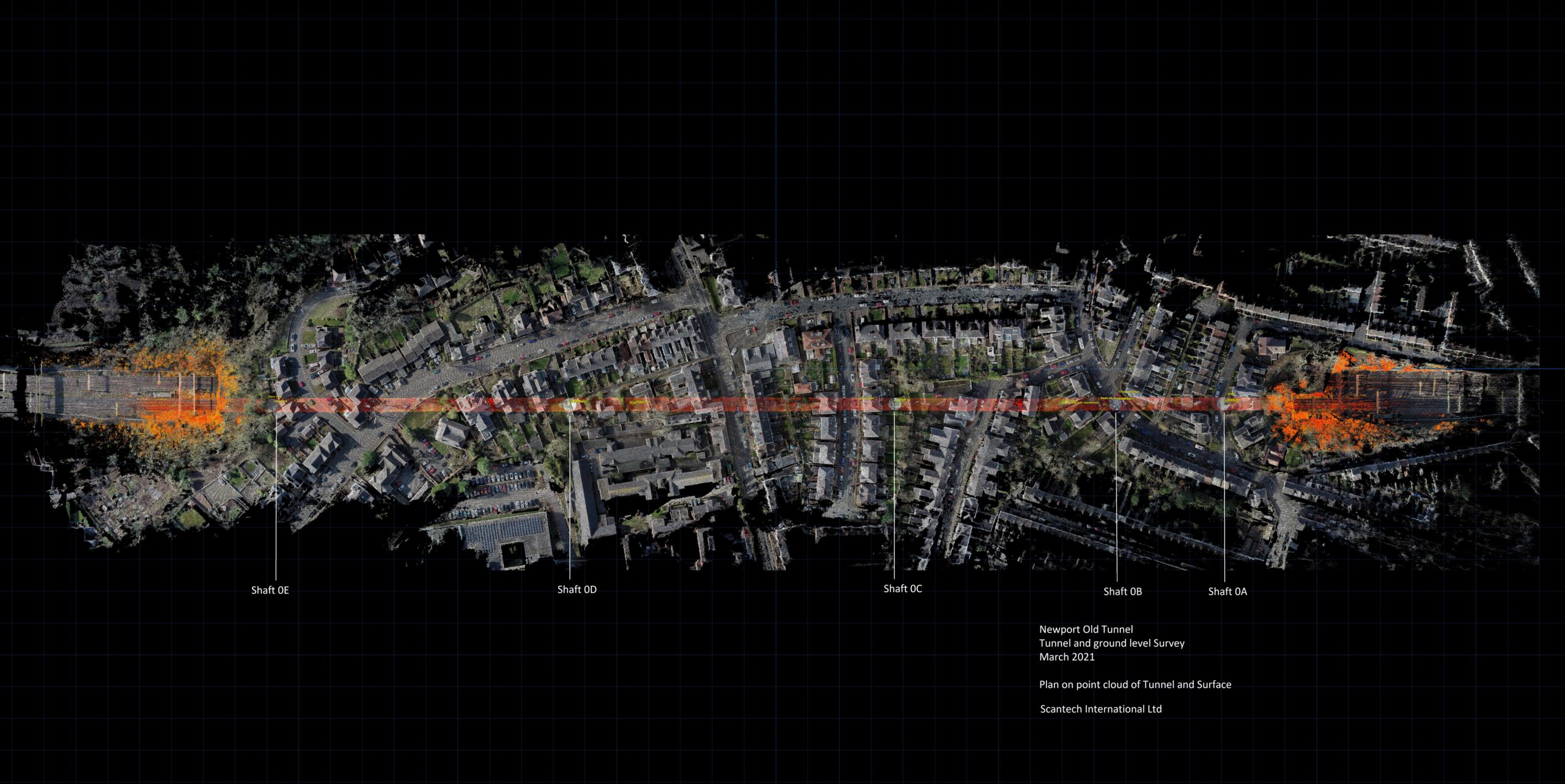

A survey was required of Newport Tunnel in Wales to locate 6 hidden shafts.

The tunnel was scanned during a possession using a laser scanner and the location of the shafts were noted.

An RTK drone was used to survey the topside.

Site Notes

David McCrory and Jonathan McCrory carried out the survey of the tunnel and Topside survey using an RTC360 and a DJI phanton 4 RTK drone.

Images
Navigation

Survey Details

3D Model

Report

Survey Details

Survey Date

04 / 08 / 2025

Client

Network Rail / Inspire

Coordinate System

OS

Colour Scans?

Yes

Job Description

To carry out a 3D laser survey for topographical survey and drone UAV survey at Newport tunnel to produce a 3D photogrammetry model.

Site Notes

Generation 4 model

360 images every 10m.

3D Model or Virtual Tour

Instructions

Click the link below to view the 3D model or virtual tour.

Open the 3D Model

Scantech Tunnel Maps

Notes

Compressed Tunnel Maps - please contact Scantech for full resolution tunnel maps.

View Scantech Tunnel Maps

Request Data

To request additional or different data, please complete the following form and our team will be in touch.

Contact

For more information regarding the above data please contact info@scantech-international.com or call 01625 260 446
